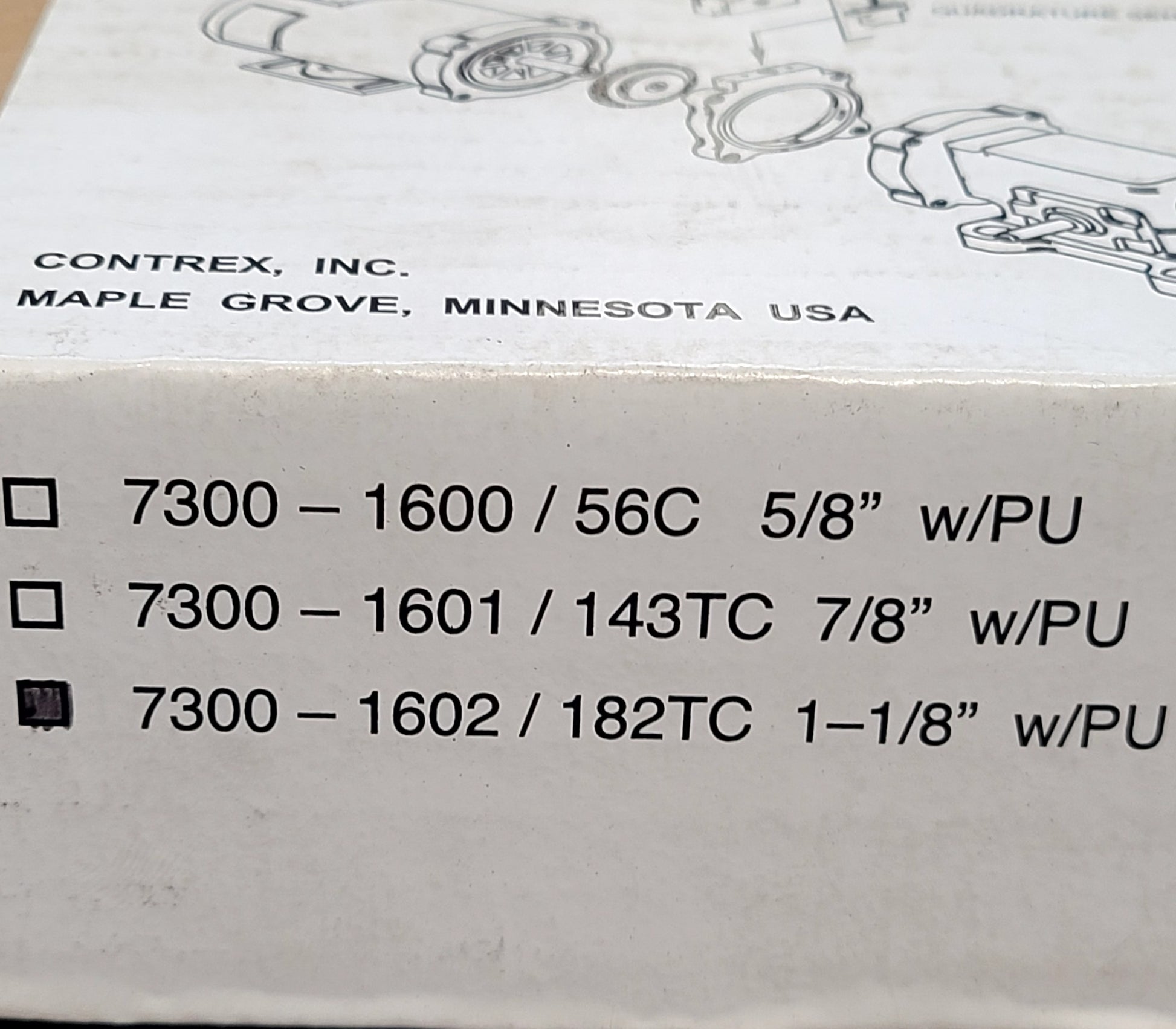

This Contrex 7300-1602 is specifically configured for a 182TC motor frame with a 1-1/8" bore size. The "w/PU" suffix indicates it includes an internal pull-up resistor, allowing it to interface directly with controllers that do not provide their own pull-up on the sensor inputs.

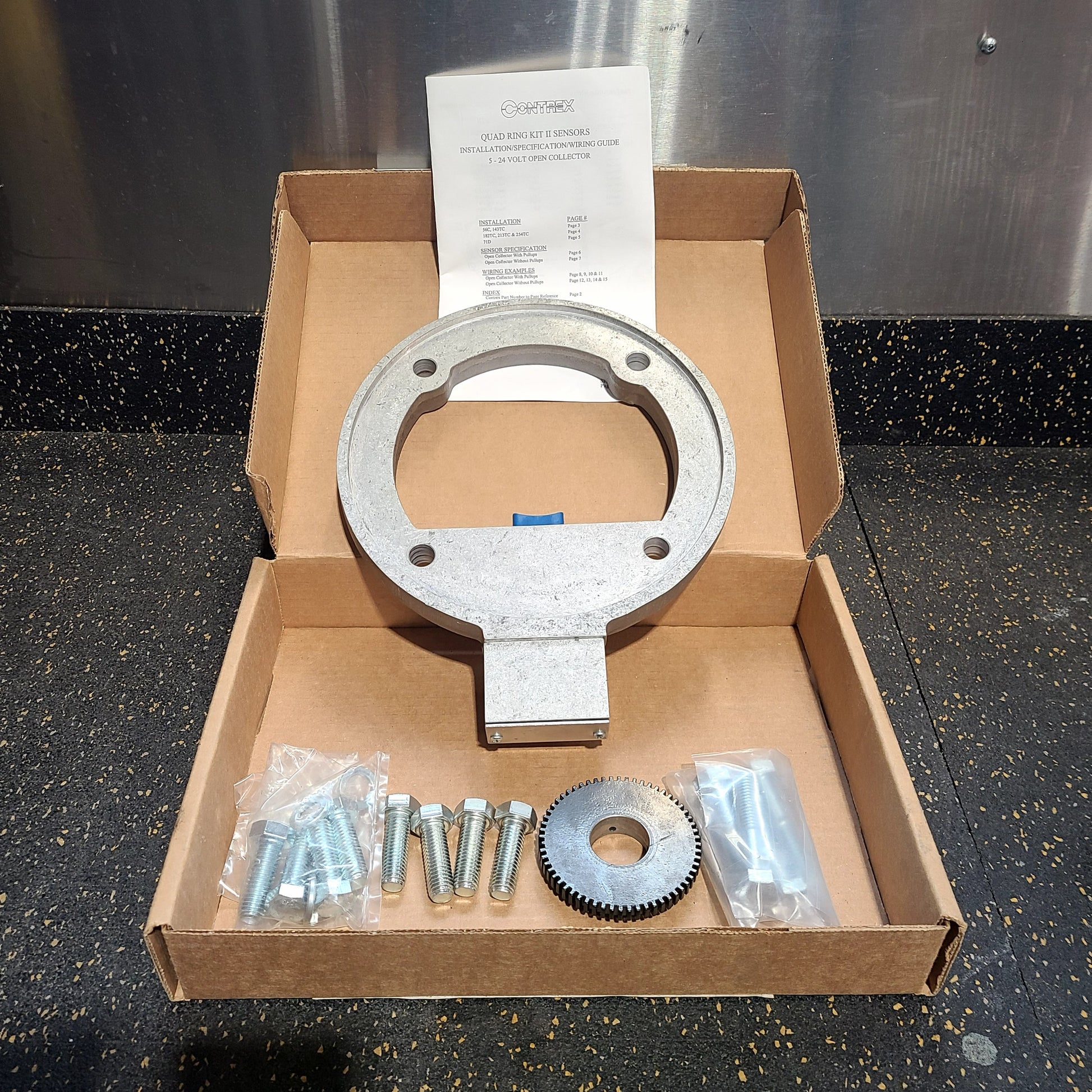

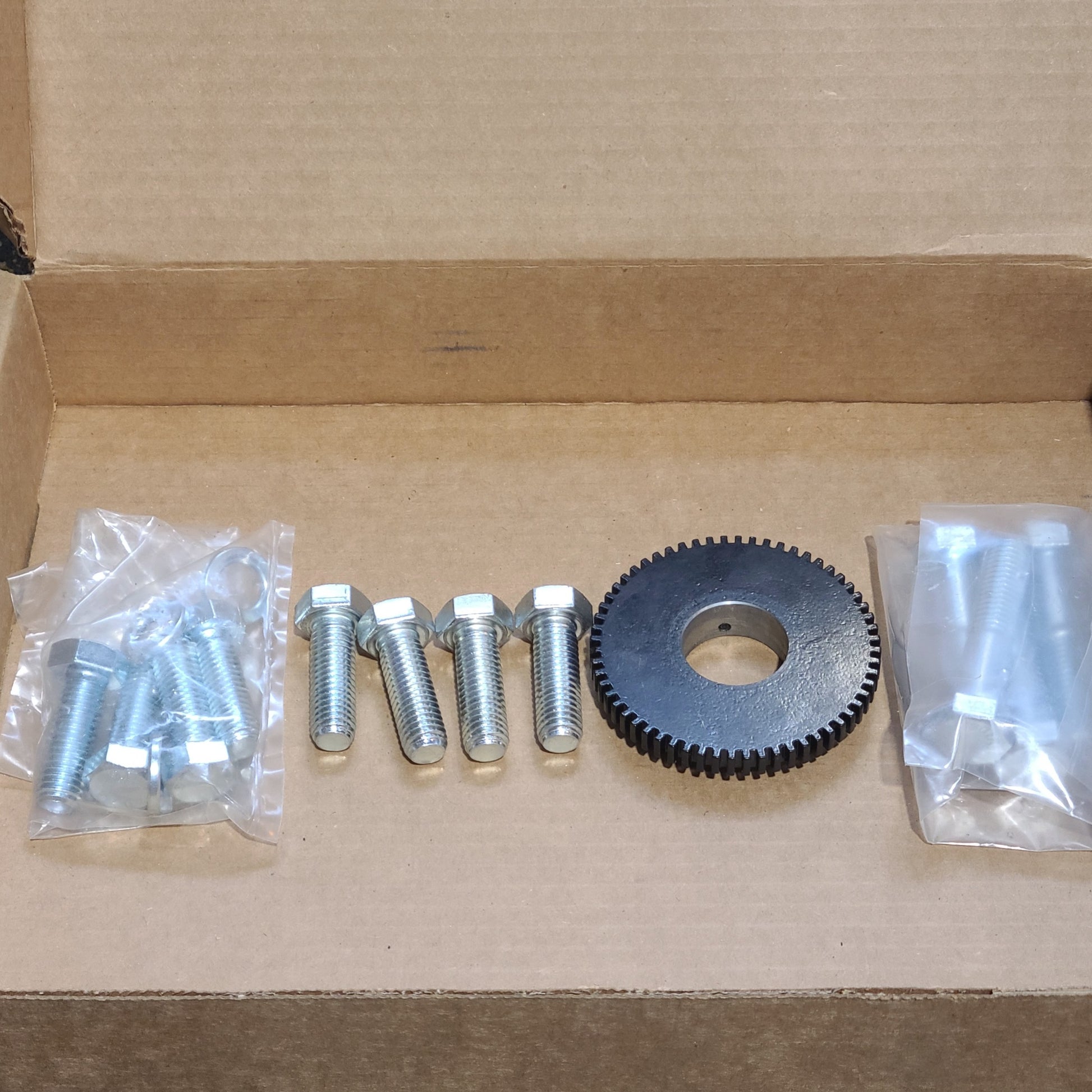

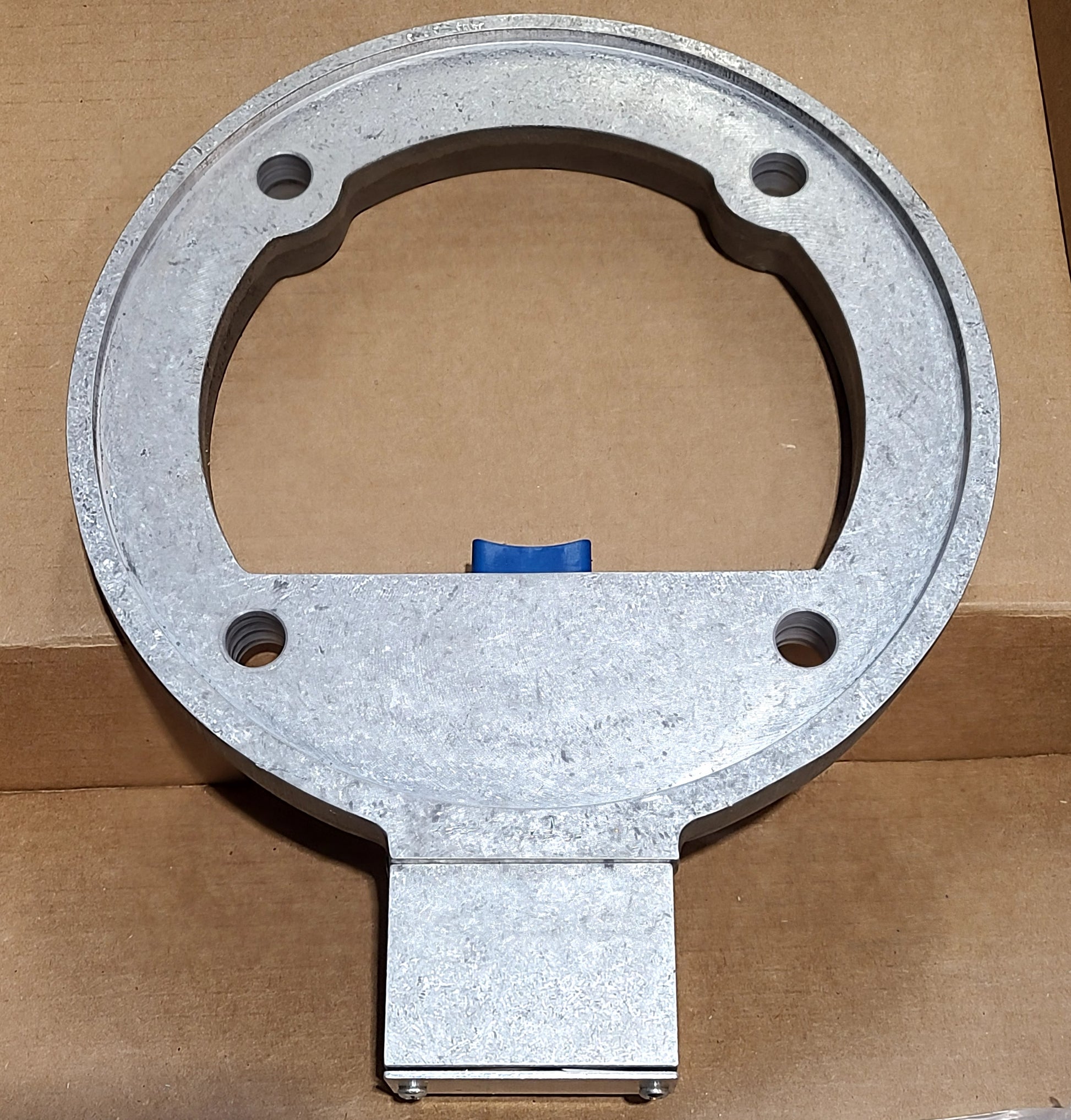

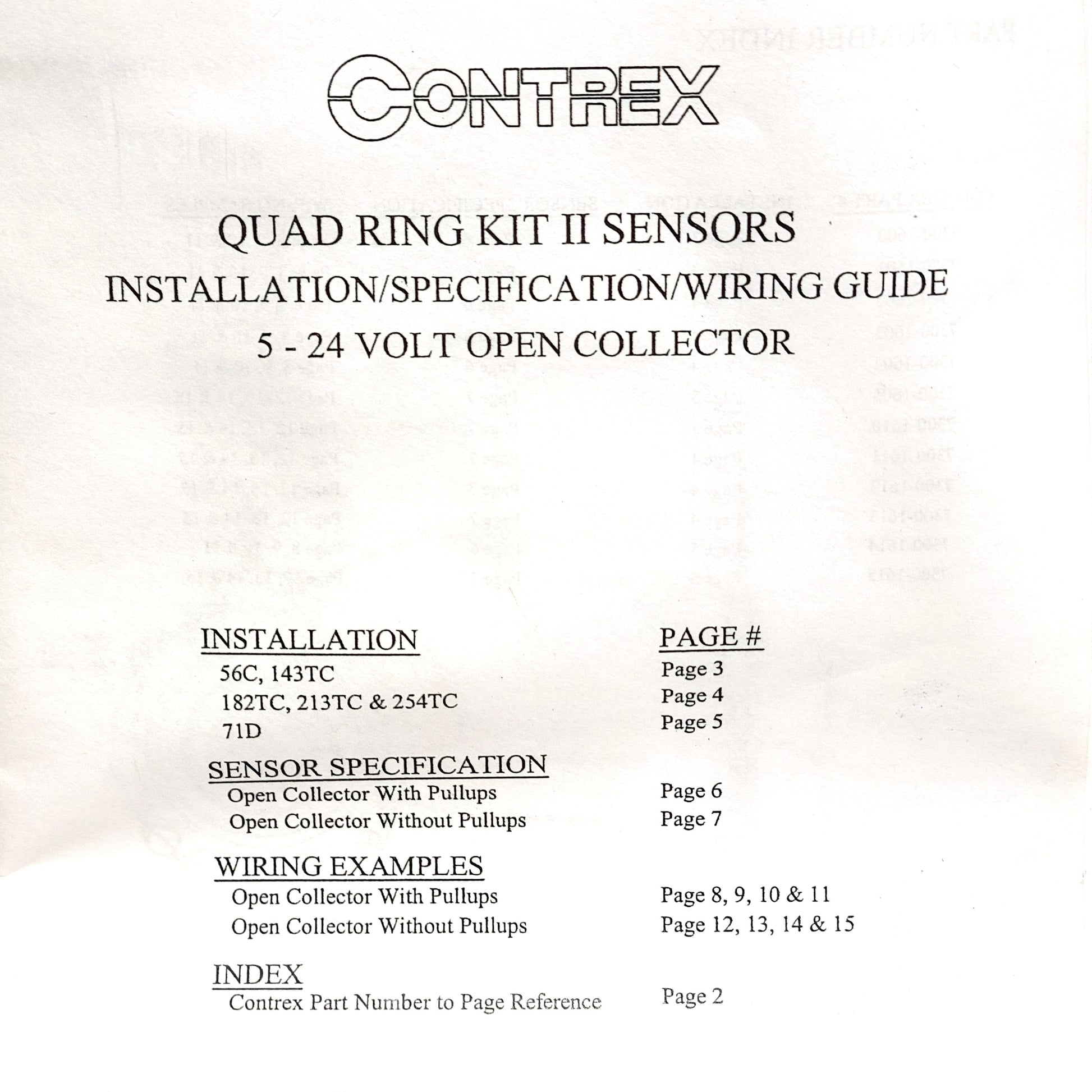

It is a high-performance speed and direction sensing system designed for closed-loop motion control. These kits typically include a Quadrature Sensor II, a 60-tooth gear, and a mounting ring flange for "drop-in" motor installation.
Product Specifications The Quadrature Sensor II technology is designed to be more rugged and easier to mount than traditional optical encoders.
• Sensor Type: Quadrature Encoder (senses both speed and direction). • Electrical: 5-24 VDC open-collector output with internal pull-up resistor. • Mechanical: Designed for 182TC / 184TC NEMA frame sizes with a 1-1/8" bore and a 60-tooth gear. • Environment: Rated for operating temperatures between -40°C to +125°C. • Performance: Capable of zero-speed sensing up to 10,000 RPM with a 100 kHz frequency limit
