Hammond Console Steel Gray 20"L X 16"W, BRAND NEW
Designed for use as electric, hydraulic or pneumatic control and instrument enclosures.
Ideal for flat or surface mounting/pedestal to provide the necessary 30° or 60° control slope.
Provides protection from dirt, dust, oil and water.
Formed 14 gauge steel. Smooth, continuously welded seams.

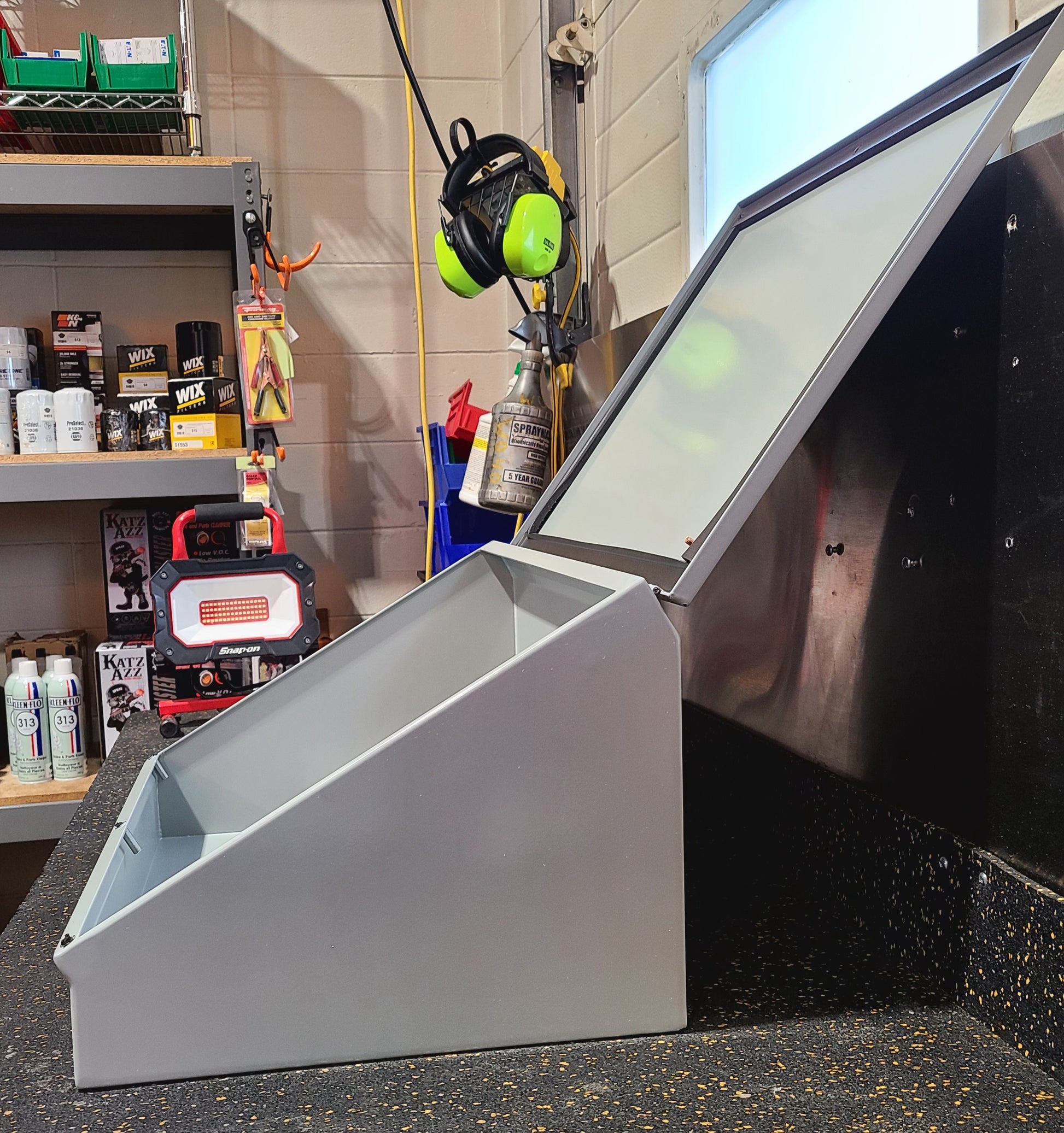

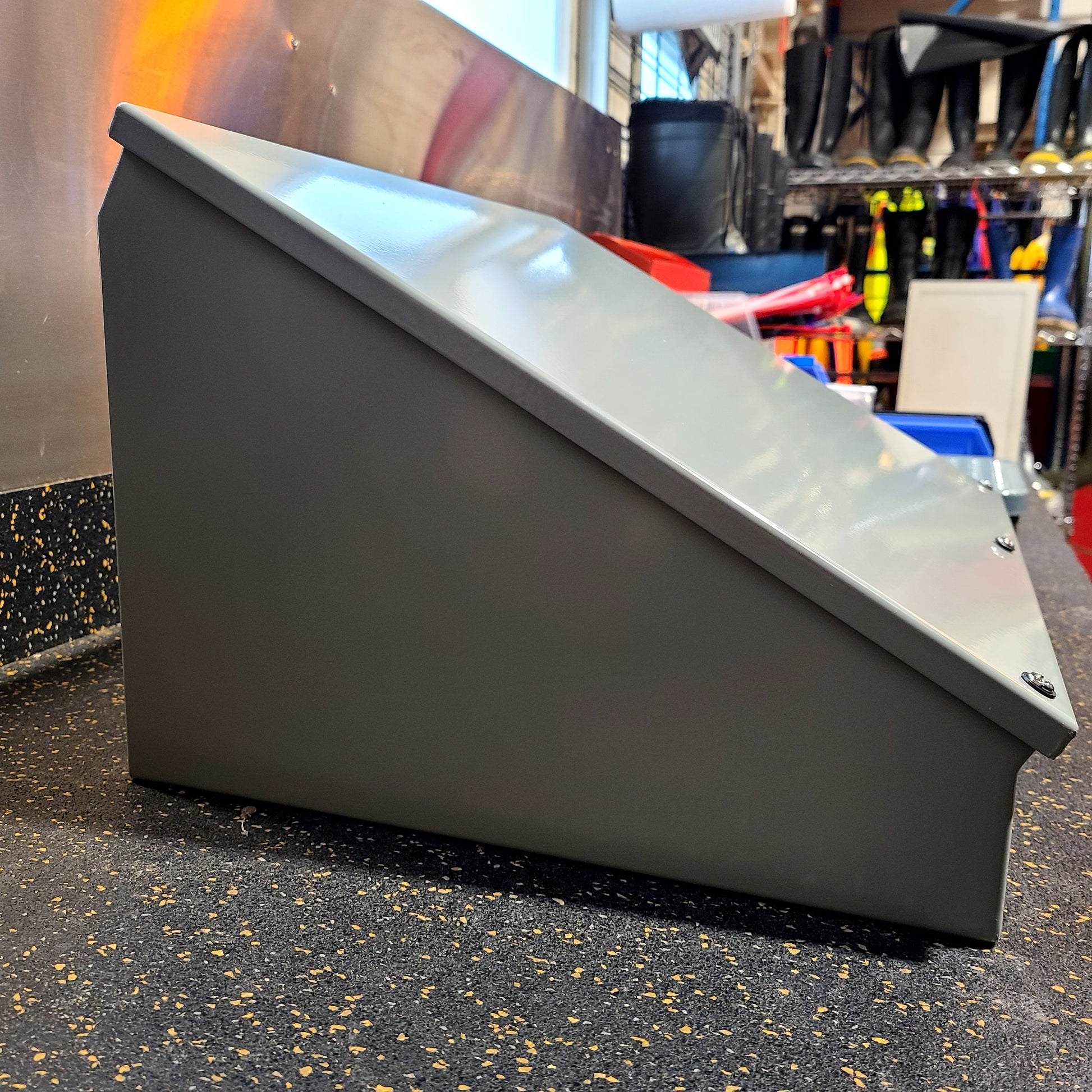

Construction provides either 30° or 60° slope on front cover depending on mounting position.

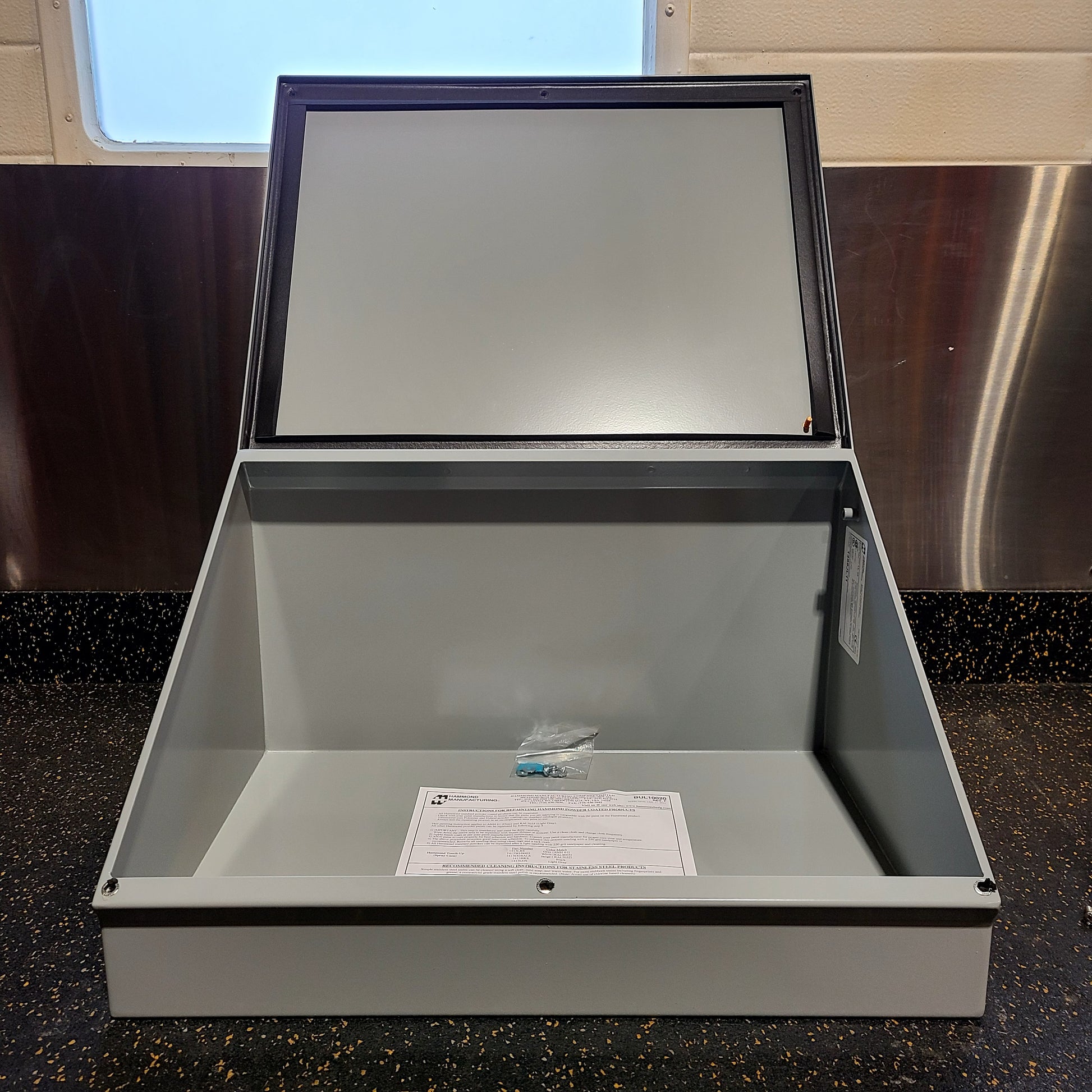

Continuously hinged cover may be removed by pulling the hinge pin.
Captive cover screws thread into sealed wells. Oil resistant gasket and adhesive.
A bonding stud is provided on the door, and a ground stud is provided on the enclosure
Standards UL 508A Type 12, 13 CSA Type 12, 13
Complies with NEMA Type 12, 13 IEC 60529, IP54
Brand: Hammond

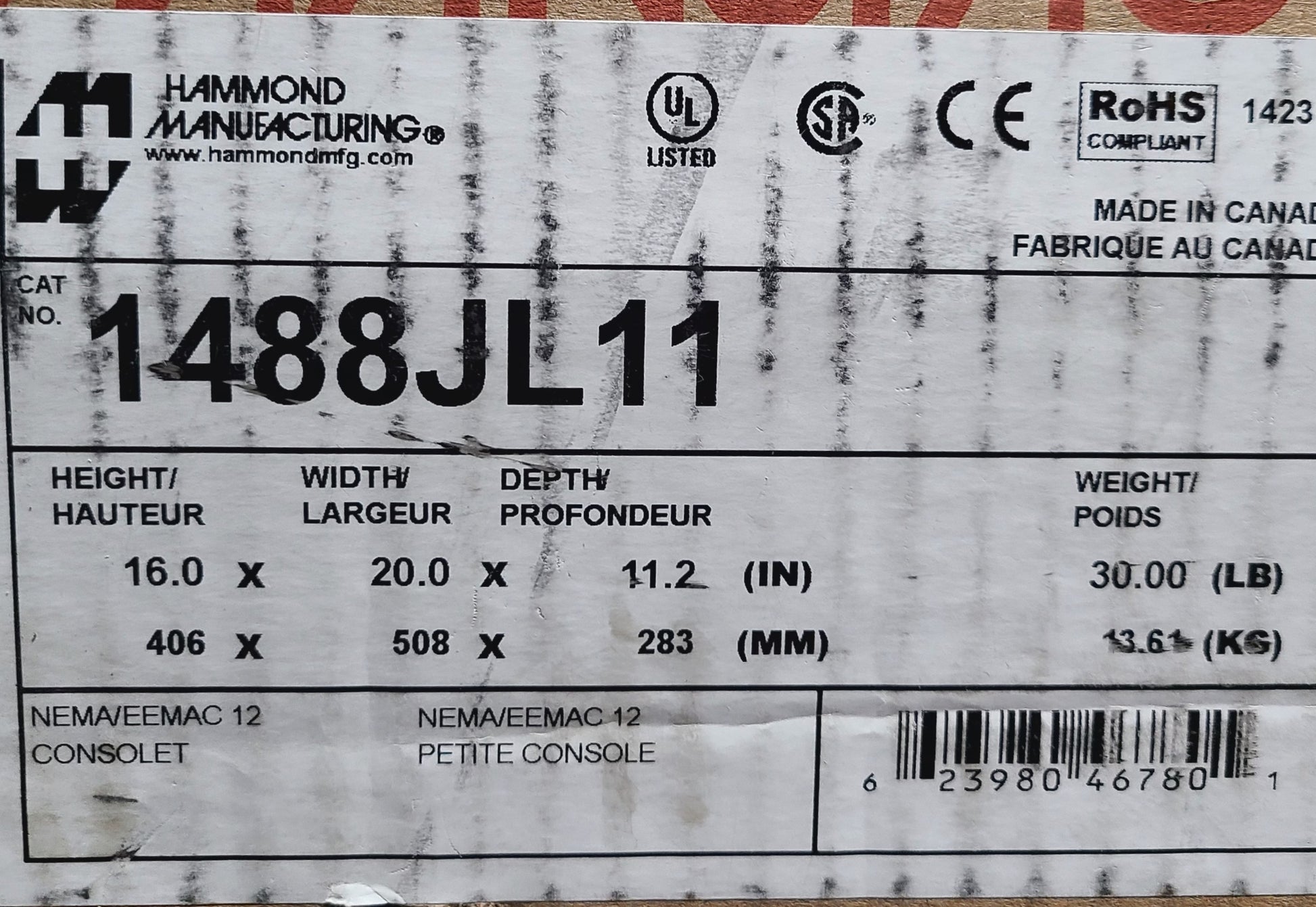

Model: 1488JL11
Length (in shipping): 21”
Width (in shipping): 17”
Height (in shipping): 12”
Weight: 30 lbs
Cowboy Tools Price: $300 (includes GST)

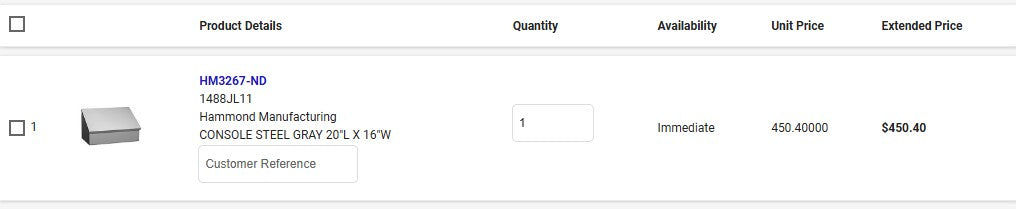

Competitor’s Price (DigiKey): $450.40 plus tax
