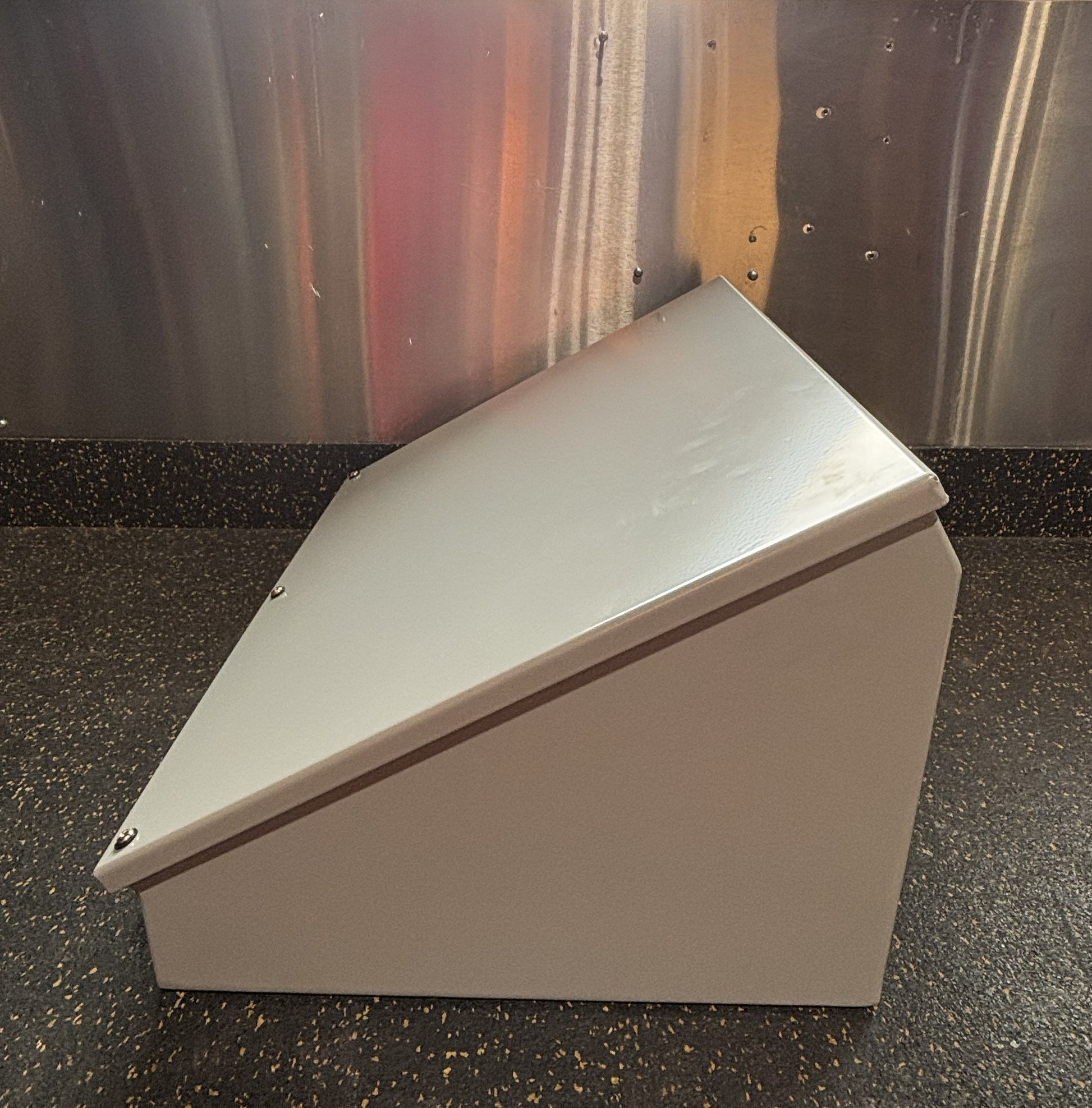

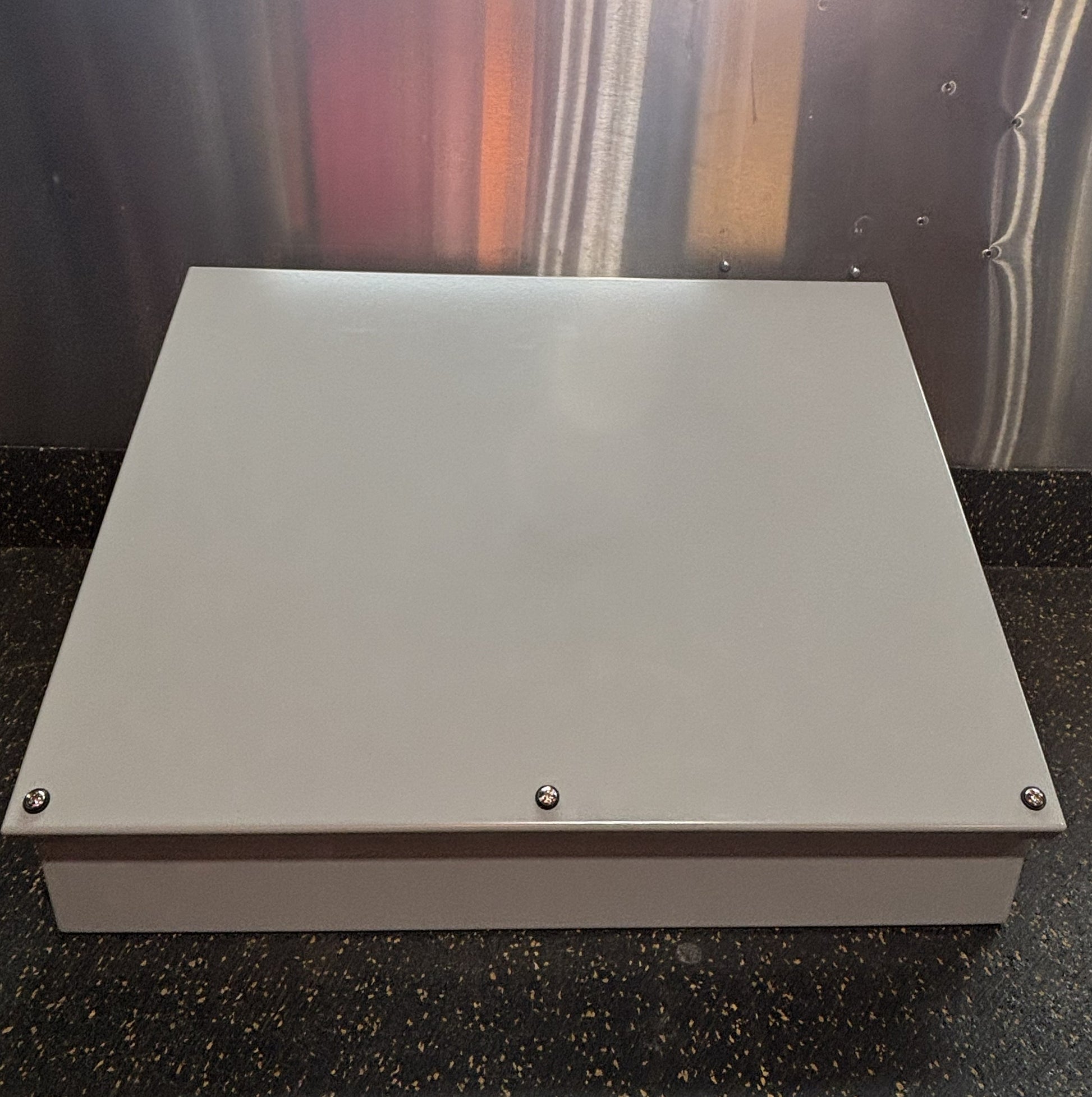

The Hammond 1488JL11 is a heavy-duty, Type 12 Consolet enclosure designed to house and protect electrical controls, instruments, and terminal wiring in industrial environments. Built for flexibility and reliable protection, this unit features a reversible sloping top that can be positioned at either a 30° or 60° angle, allowing for optimal viewing and ergonomic access to controls.
Brand: Hammond
Model: 1488JL11
Key Specifications:
Series: 1488 Type 12 Consolets
Dimensions: 16.00" H x 20.00" W x 11.16" D (406 mm x 508 mm x 283 mm)
Material: 14-gauge formed mild steel
Finish: ANSI 61 gray powder-coated paint over phosphatized surface

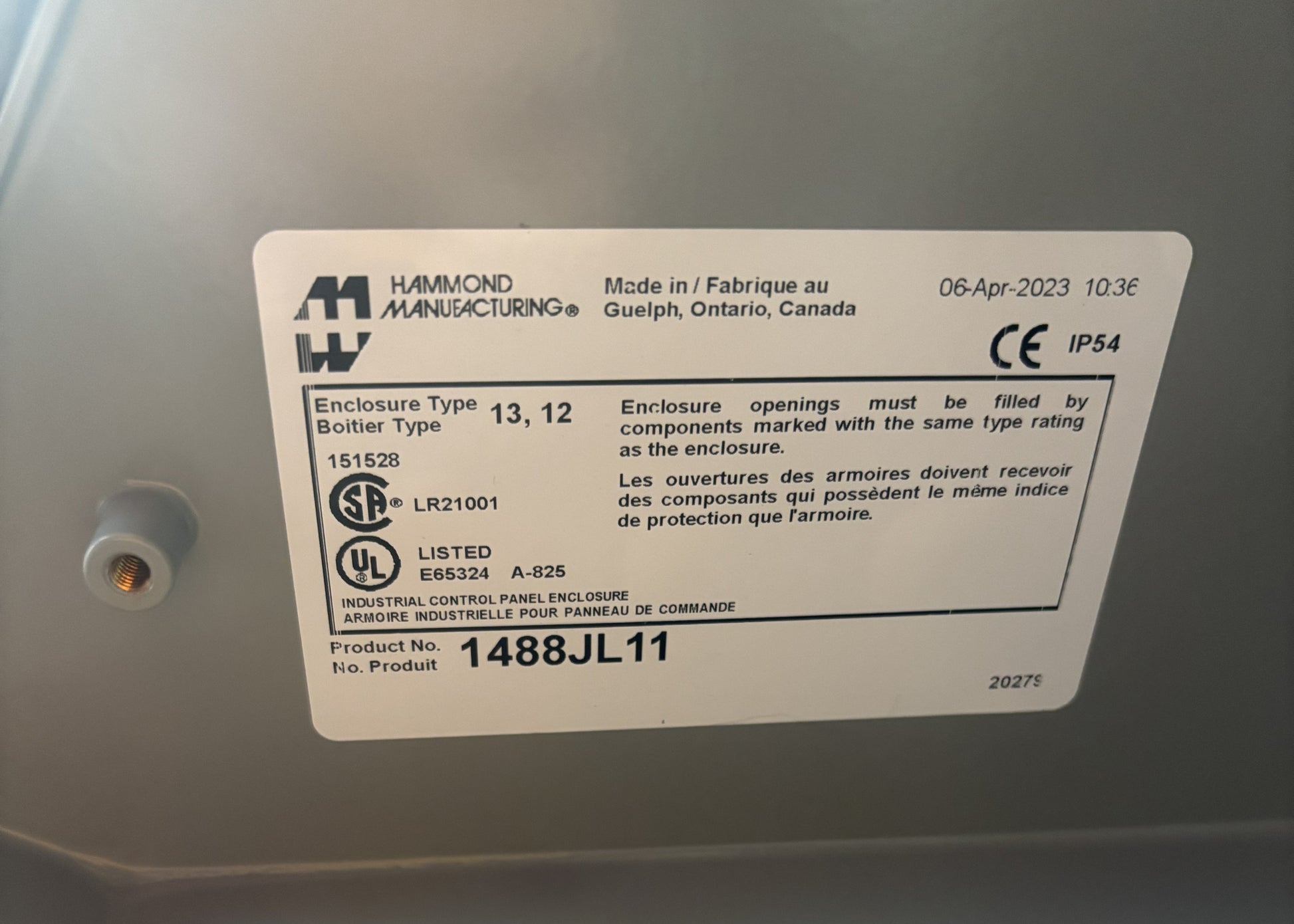

NEMA Rating: NEMA 12, 13, and IP54

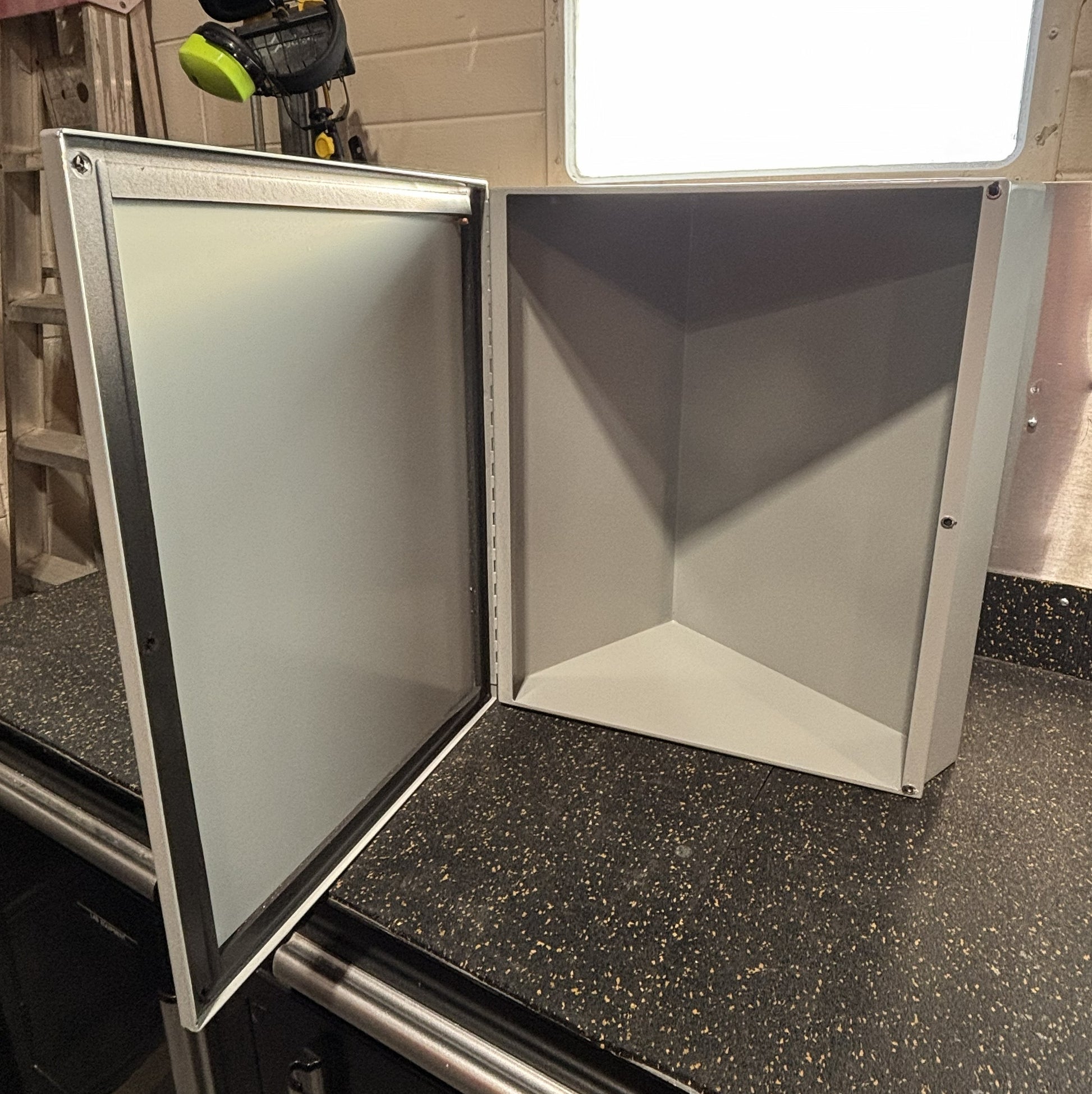

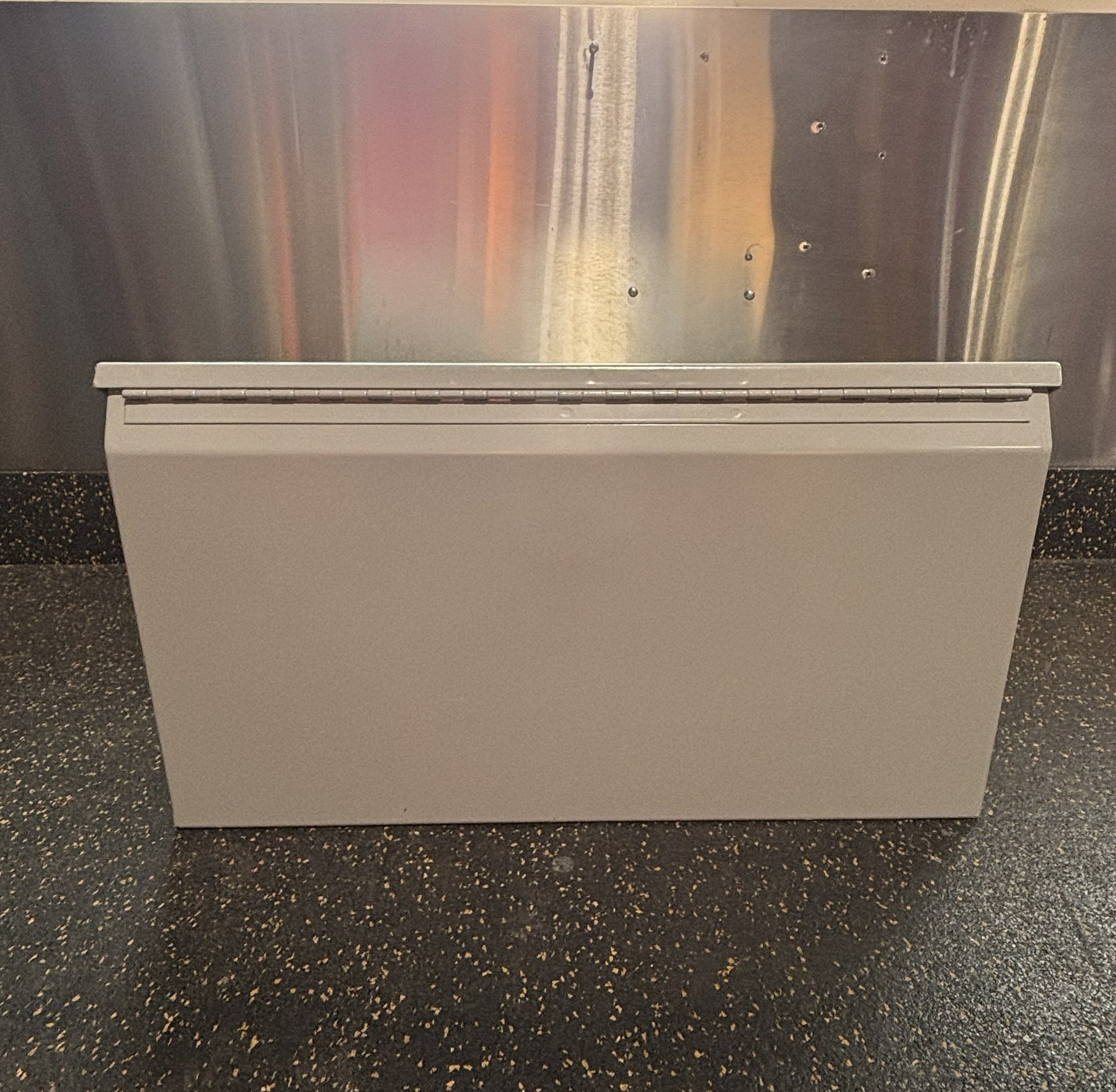

Features: Continuously hinged cover, oil-resistant gasket, and reversible 30° or 60° mounting slope.
