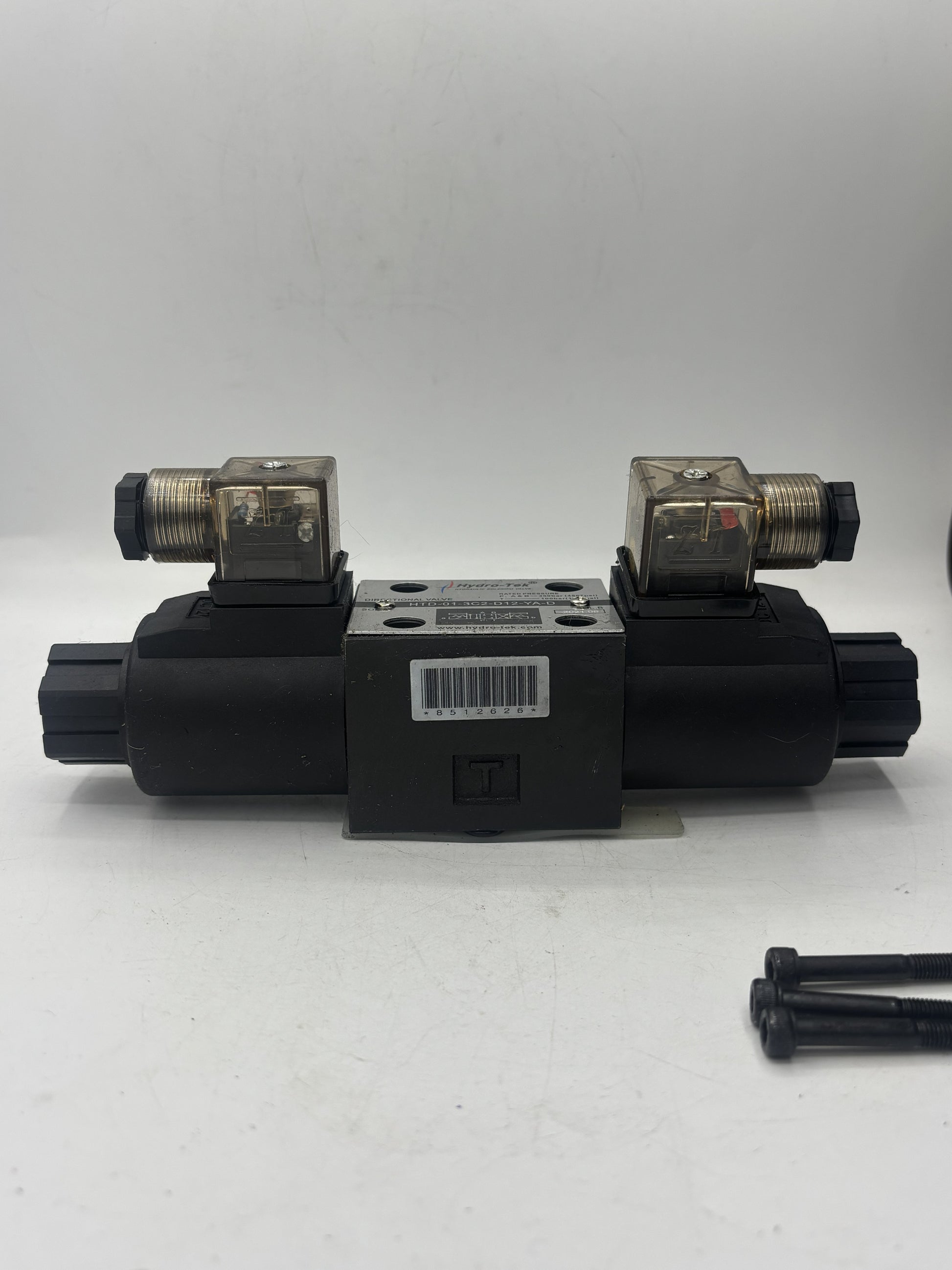

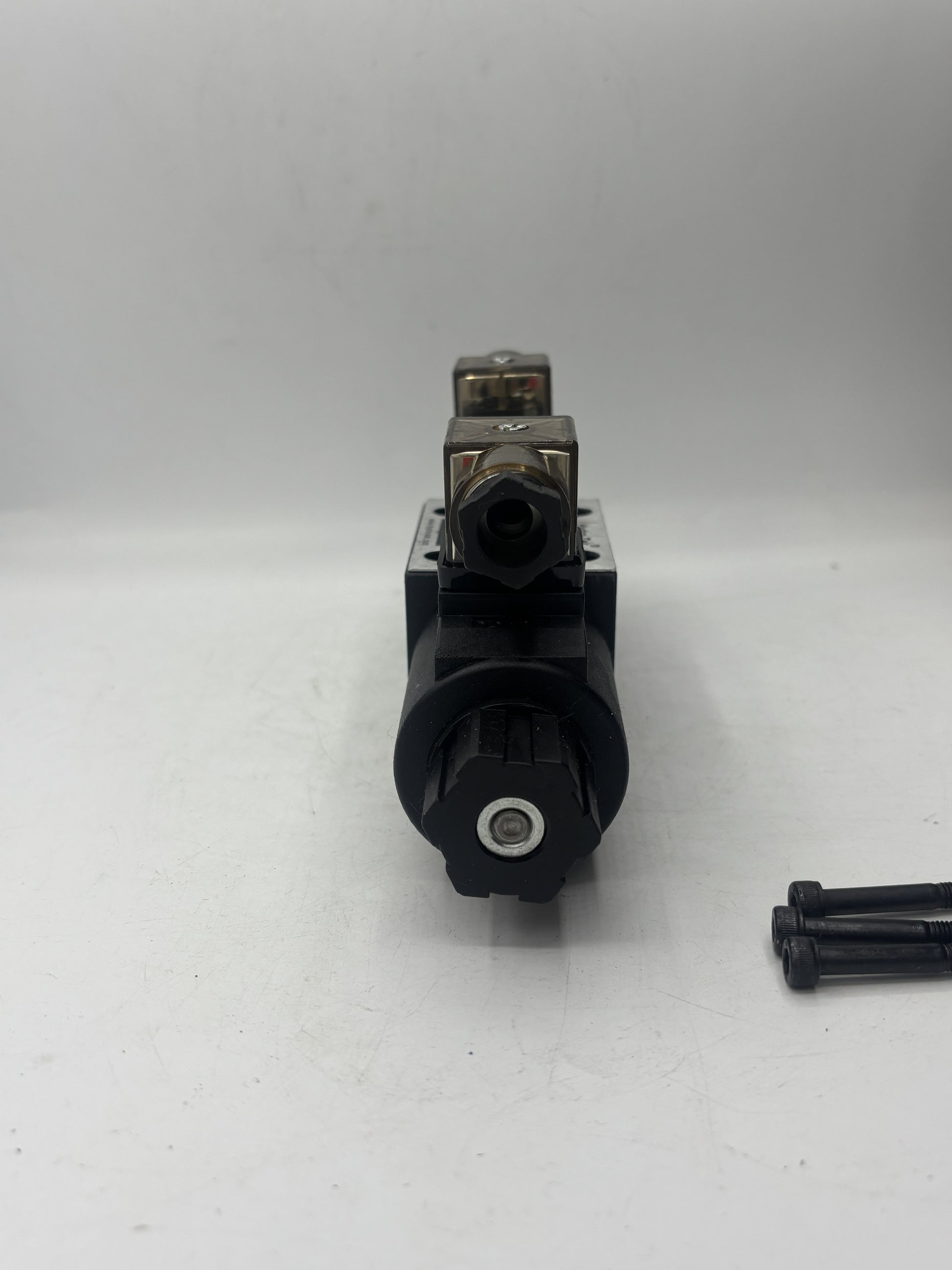

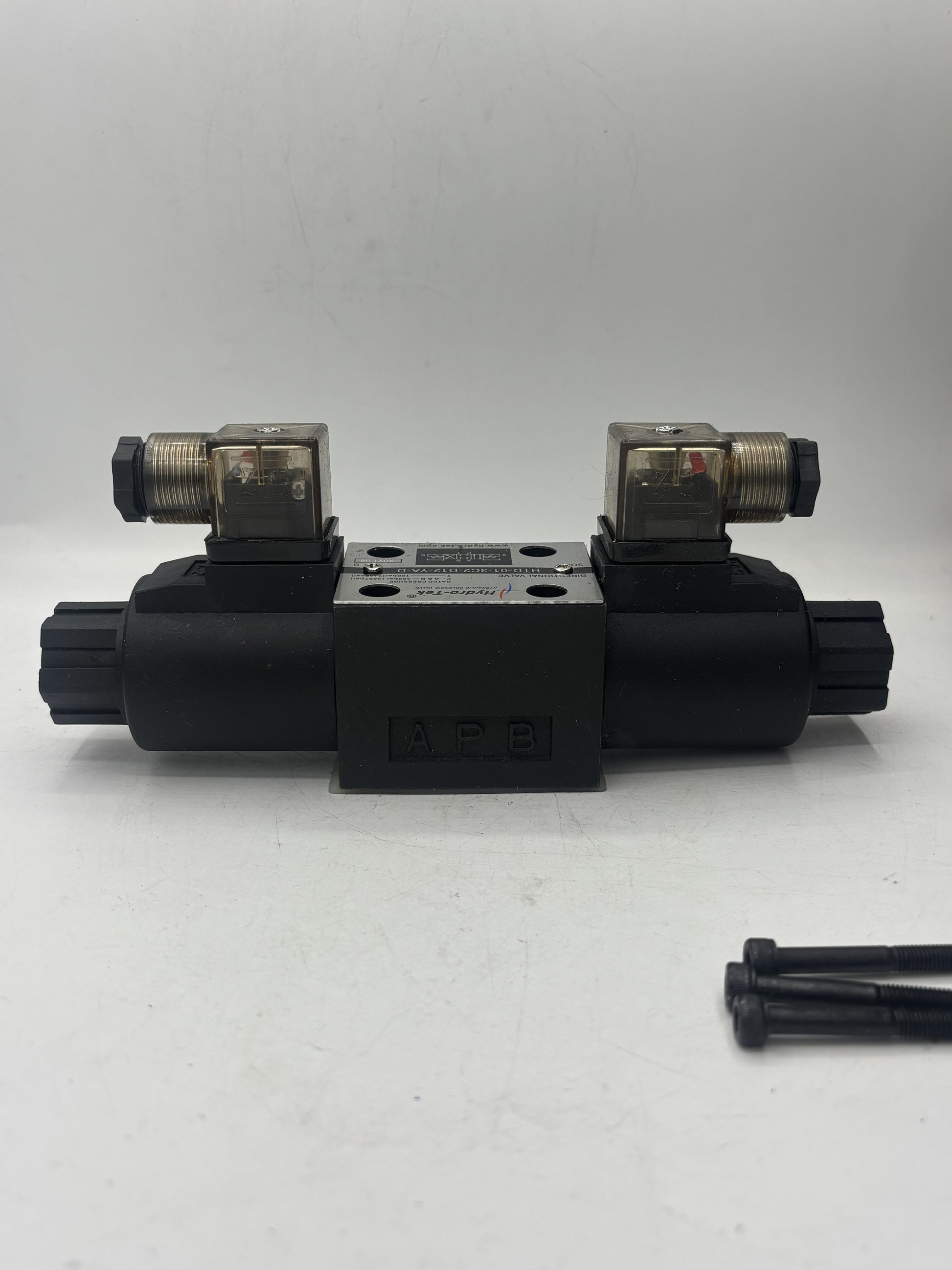

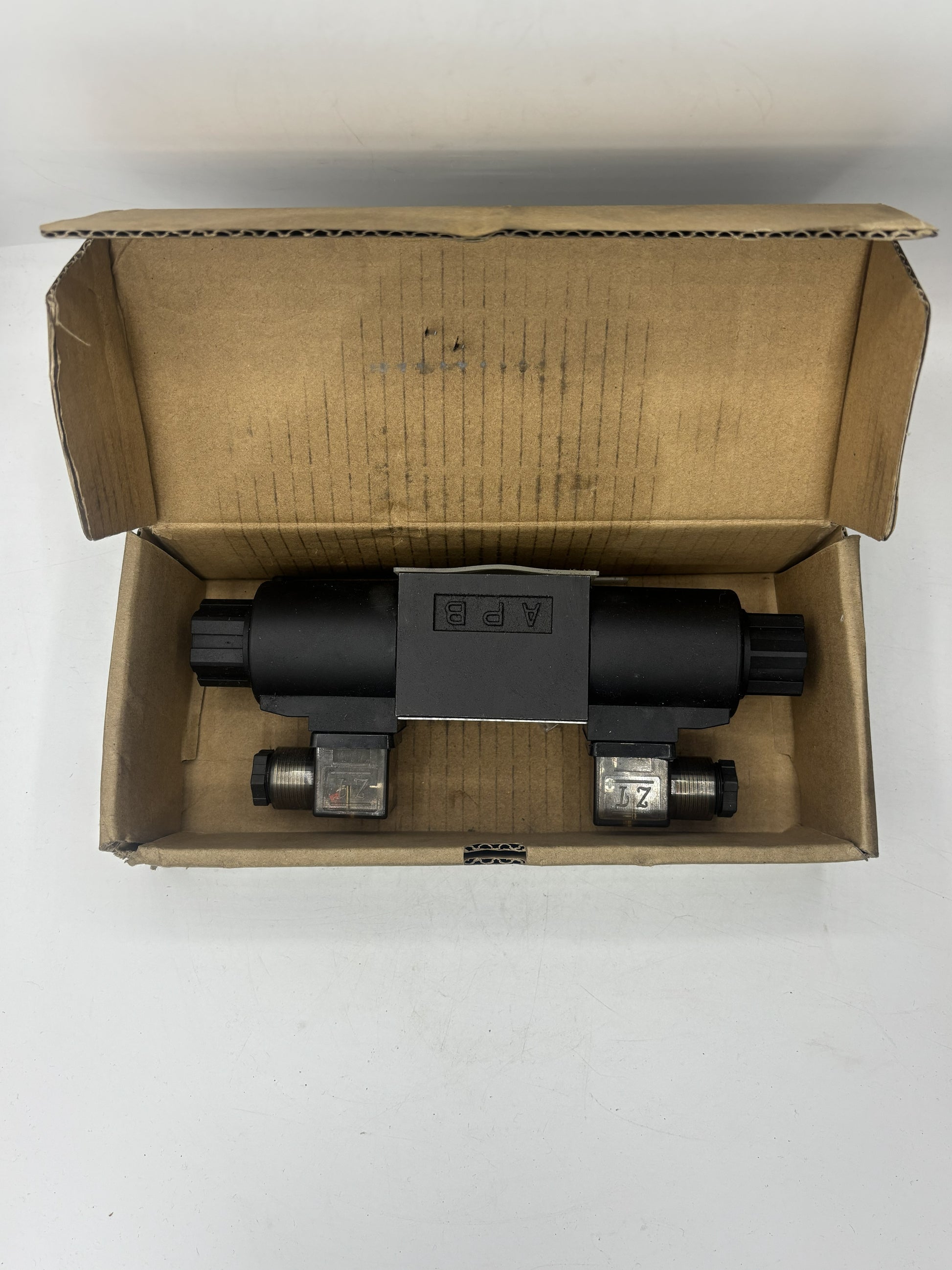

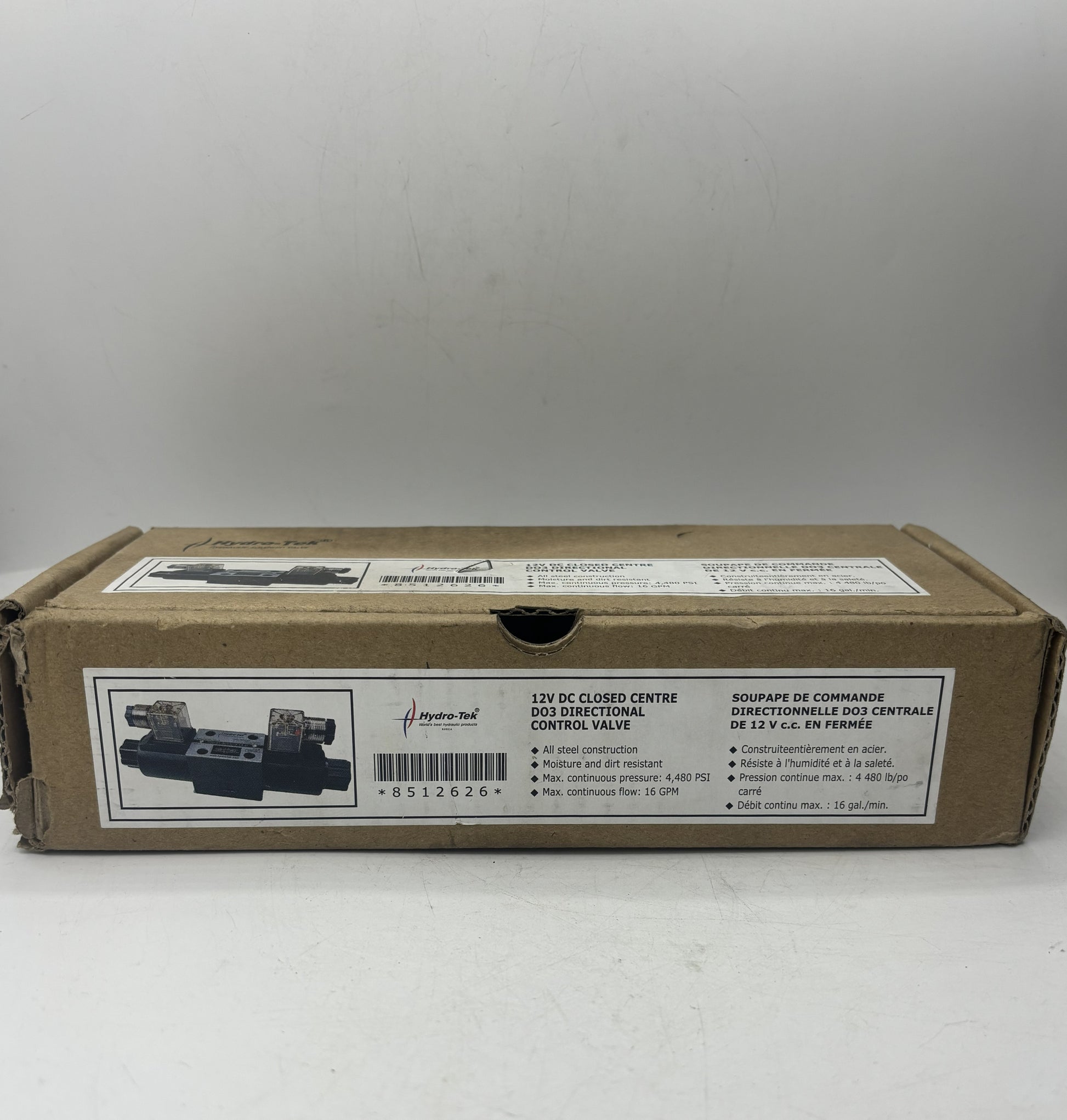

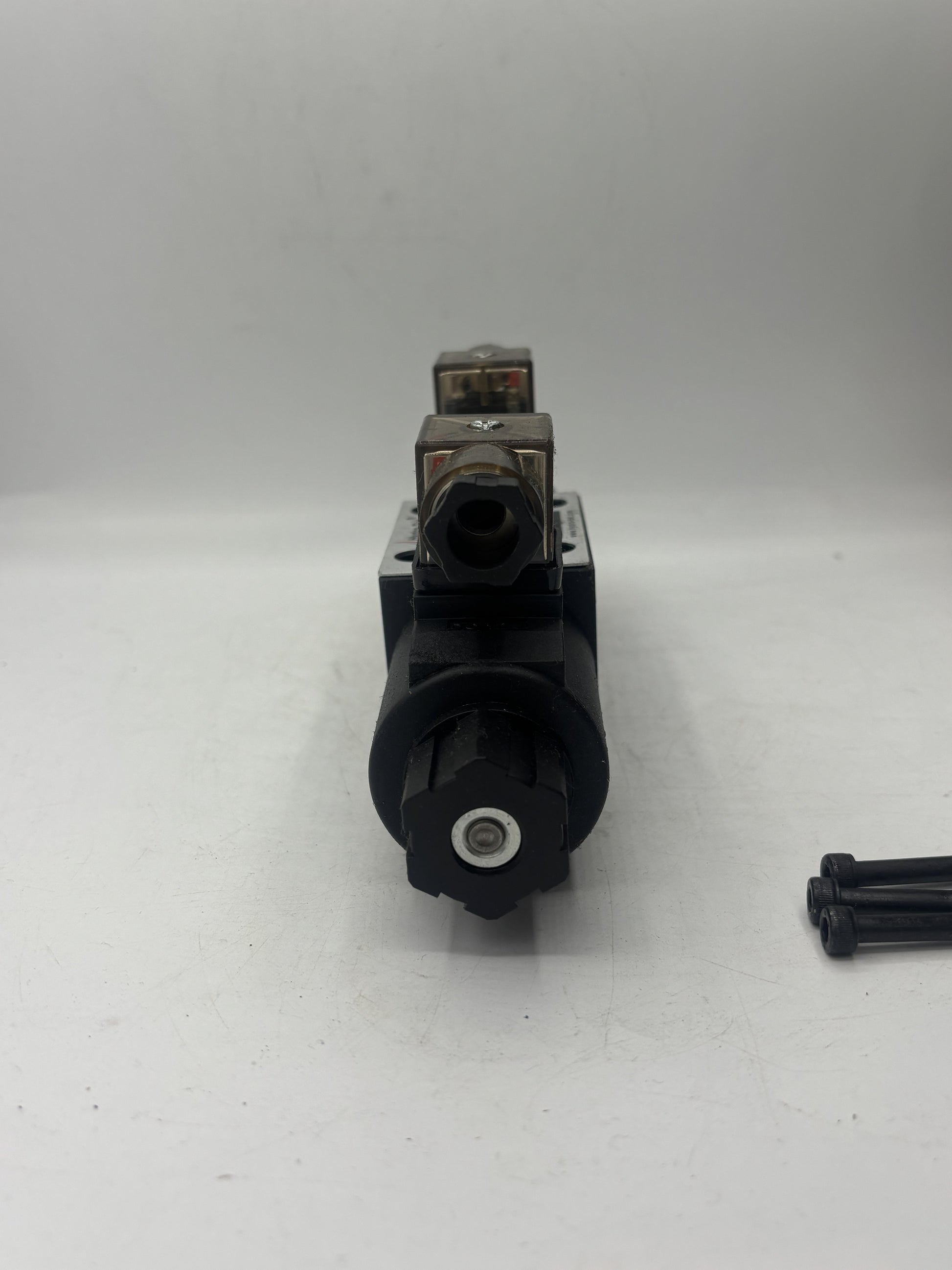

Hydro-Tek D03 hydraulic solenoid directional control valve with dual 12V DC coils. Designed for controlling the direction of hydraulic fluid flow in mobile and industrial hydraulic systems. Features a closed-center spool configuration, making it suitable for loaders, agricultural equipment, hydraulic power units, industrial machinery, and custom hydraulic systems.
Brand: Hydro-Tek

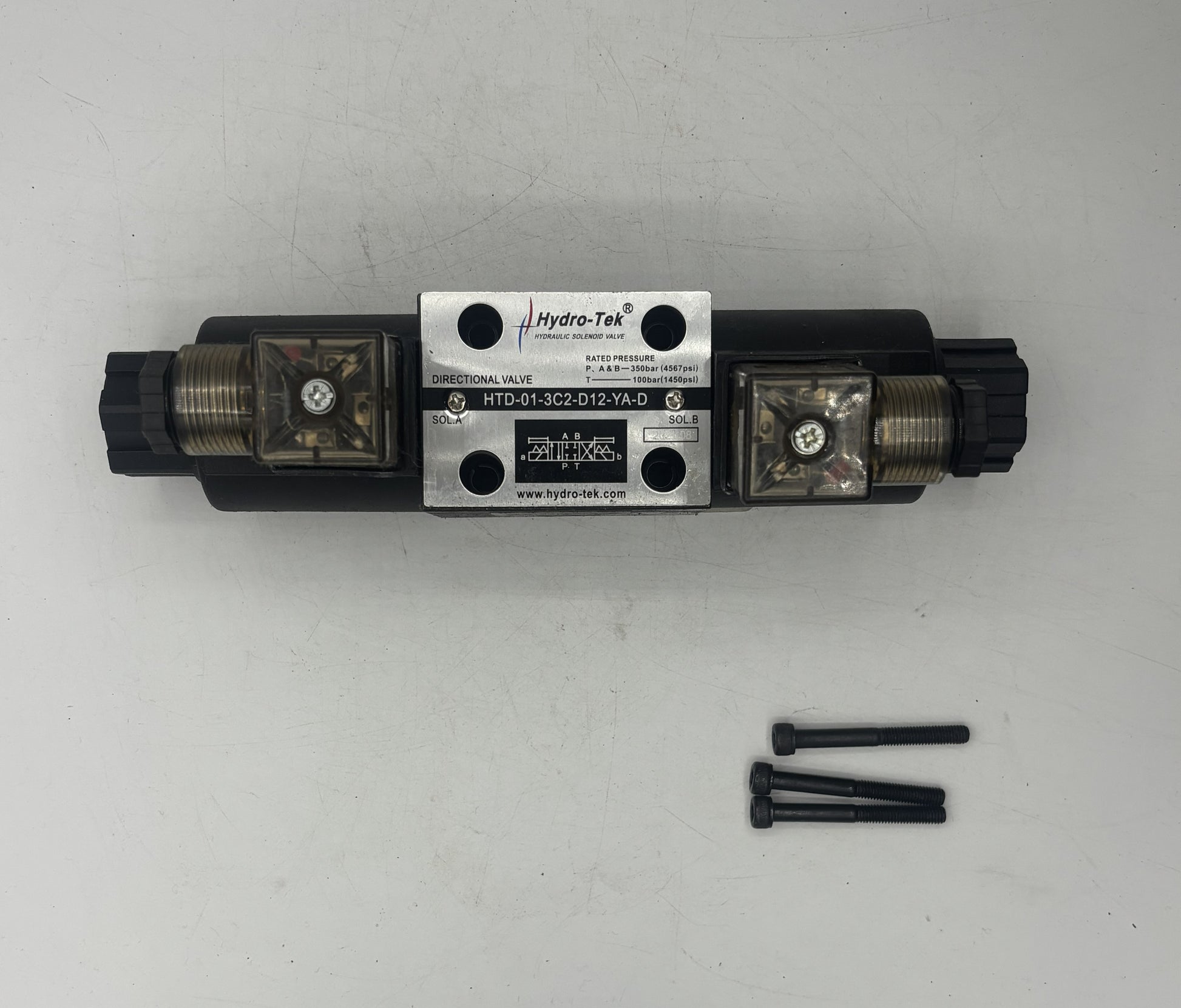

Model: HTD-01-3C2-D12-YA-DP
Specifications:
·Standard: D03 / NG6 / CETOP 3
·Spool Type: 3-position, closed center
·Voltage: 12V DC
·Solenoids: Dual coil
·Max Pressure:
·P, A, B: 350 bar (5,076 PSI)
·T: 100 bar (1,450 PSI)
·Max Flow: 16 GPM (60 L/min)
Condition: Used
·Functionality: 10/10
·Aesthetics: 10/10

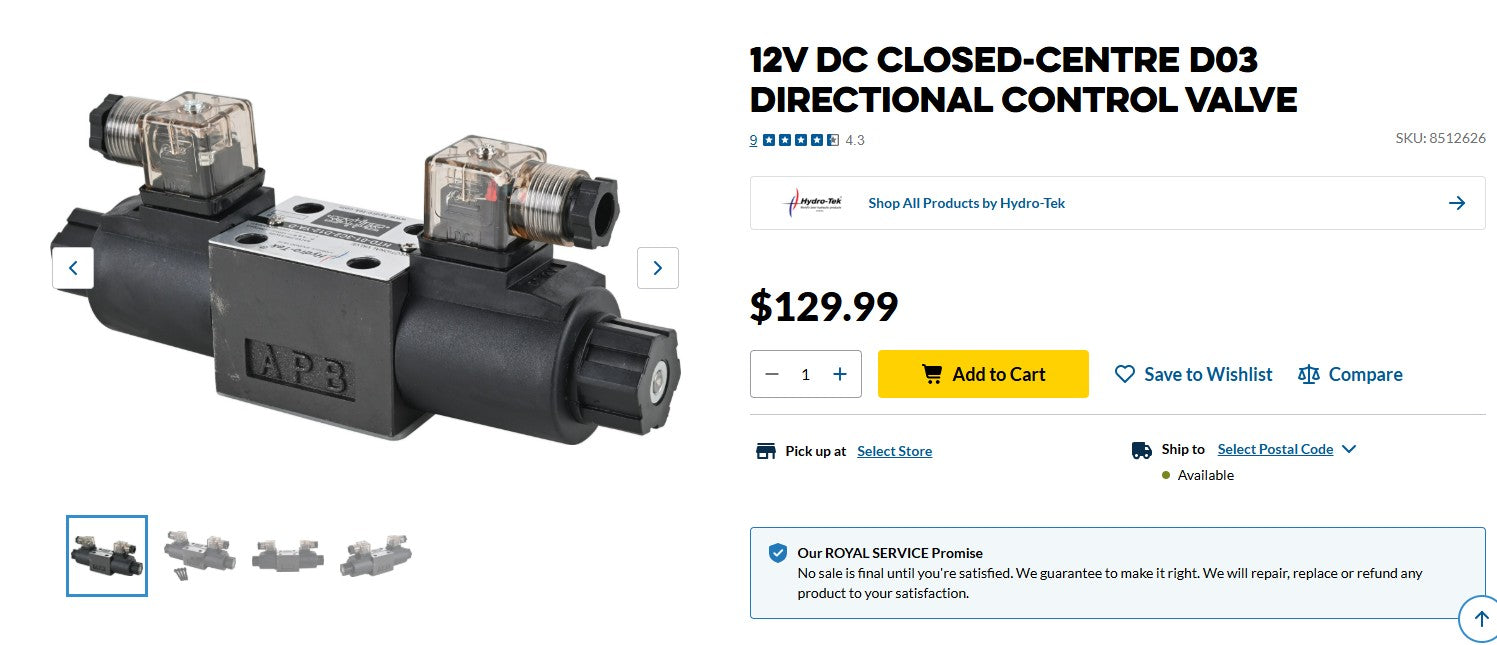

Price of Comparable (Princess Auto): $129.99 (Plus GST)
