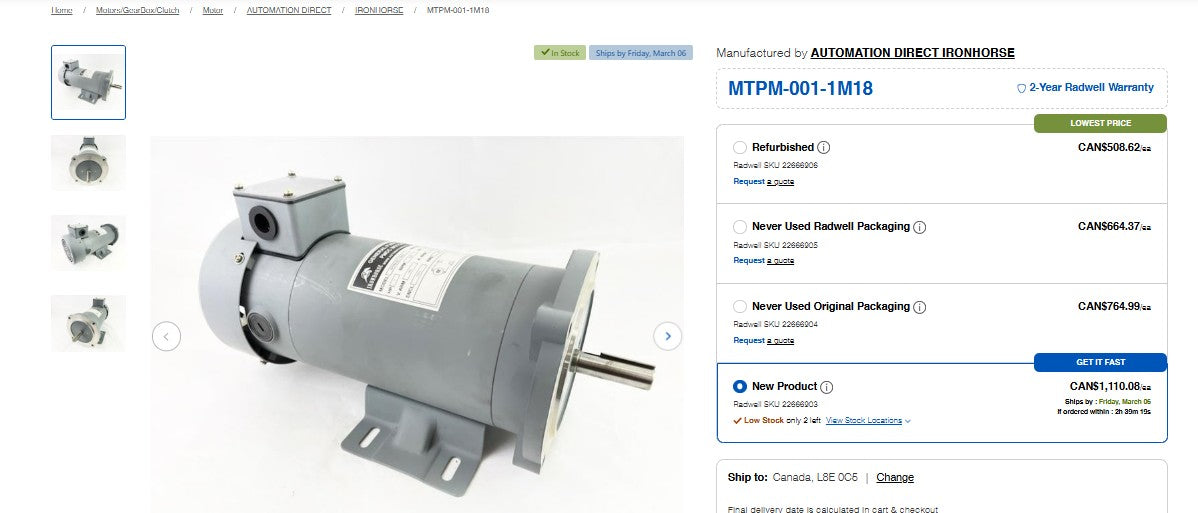

The IronHorse MTPM-001-1M18 is a 1 HP general-purpose Permanent Magnet DC (PMDC) motor designed for high starting torque and efficient performance in industrial applications like conveyors and turntables. This model is SCR-PWM rated and typically operates at a nameplate speed of 1800 RPM.
Technical Specifications
Voltage Rating: 180 VDC armature voltage.
Speed: Rated for 1800 RPM with a 20:1 constant torque speed range.
Enclosure: Totally Enclosed Fan-Cooled (TEFC) with an IP54 environmental rating.
Frame and Mounting: NEMA 56C frame made of rolled steel; includes a C-face and a removable rigid base mount.
Shaft: 5/8-inch diameter round shaft with a square key.
Insulation: Class F insulation with a 1.0 service factor.
Inclusions: Shipped with one set of brushes installed and an additional spare set of brushes in the box.
