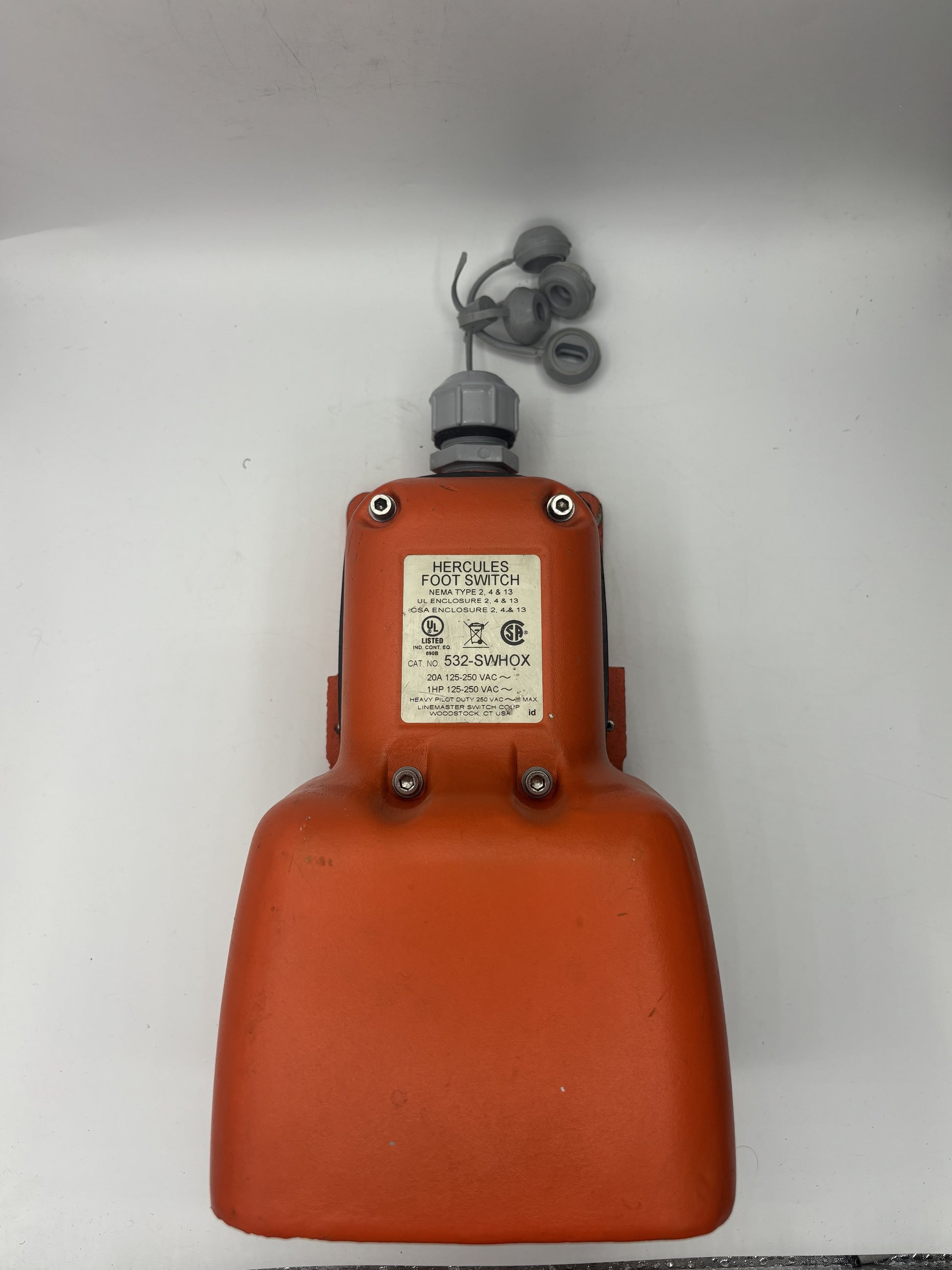

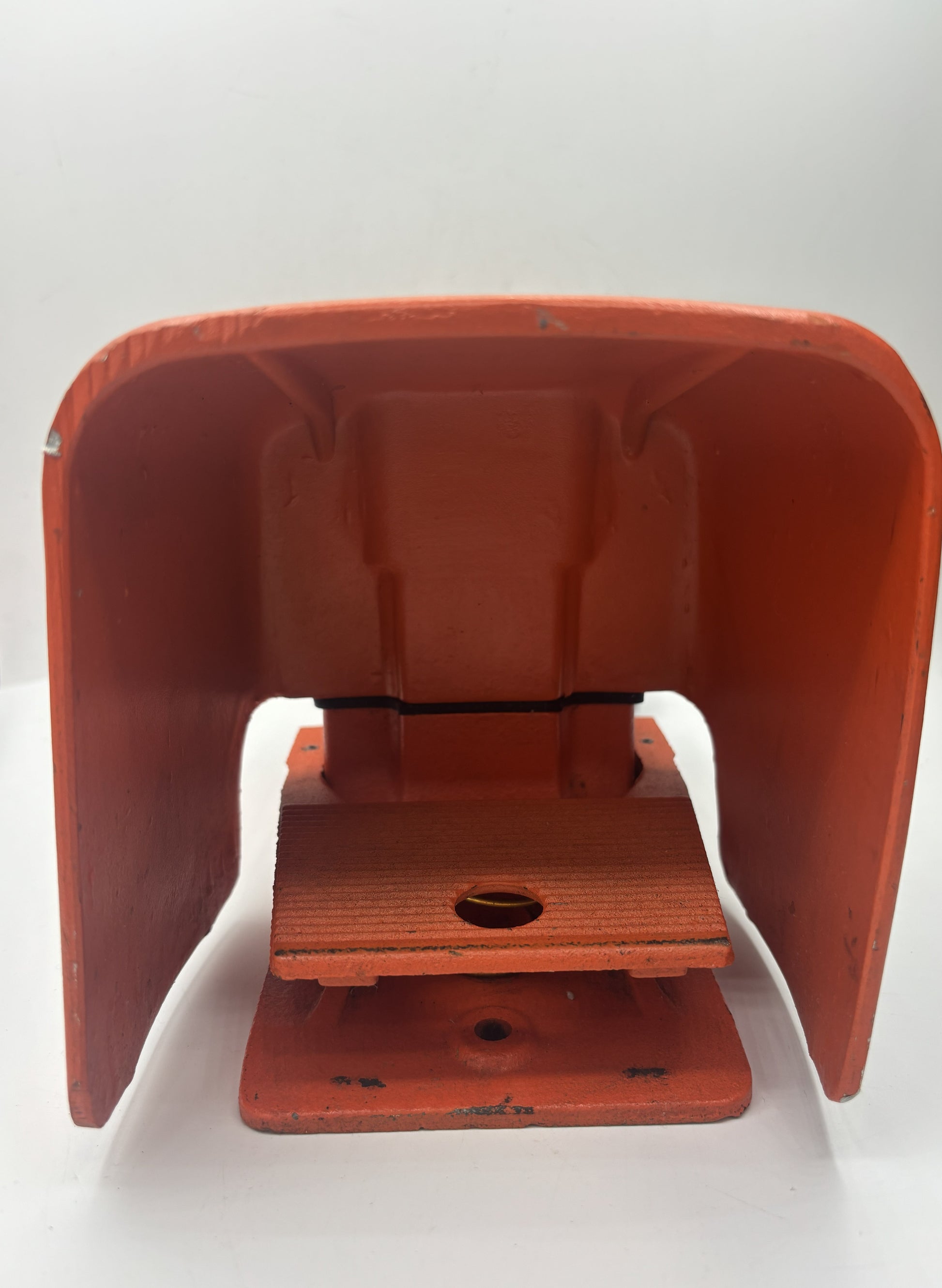

This model is equipped with an Extra Oversized (OX) Shield constructed from strong cast aluminum, providing extra vertical clearance that easily accommodates oversized safety shoes and metatarsal guards. With an IP56 rating for dust and water protection and durable internal components, the 532-SWHOX is ideal for industrial applications ranging from industrial welders to man-lift operations.
Brand: Linemaster Switch Corporation
Model: 532-SWHOX
Key Specifications:
Action: Momentary (Single Stage)
Contact Configuration: DPDT (Form C)

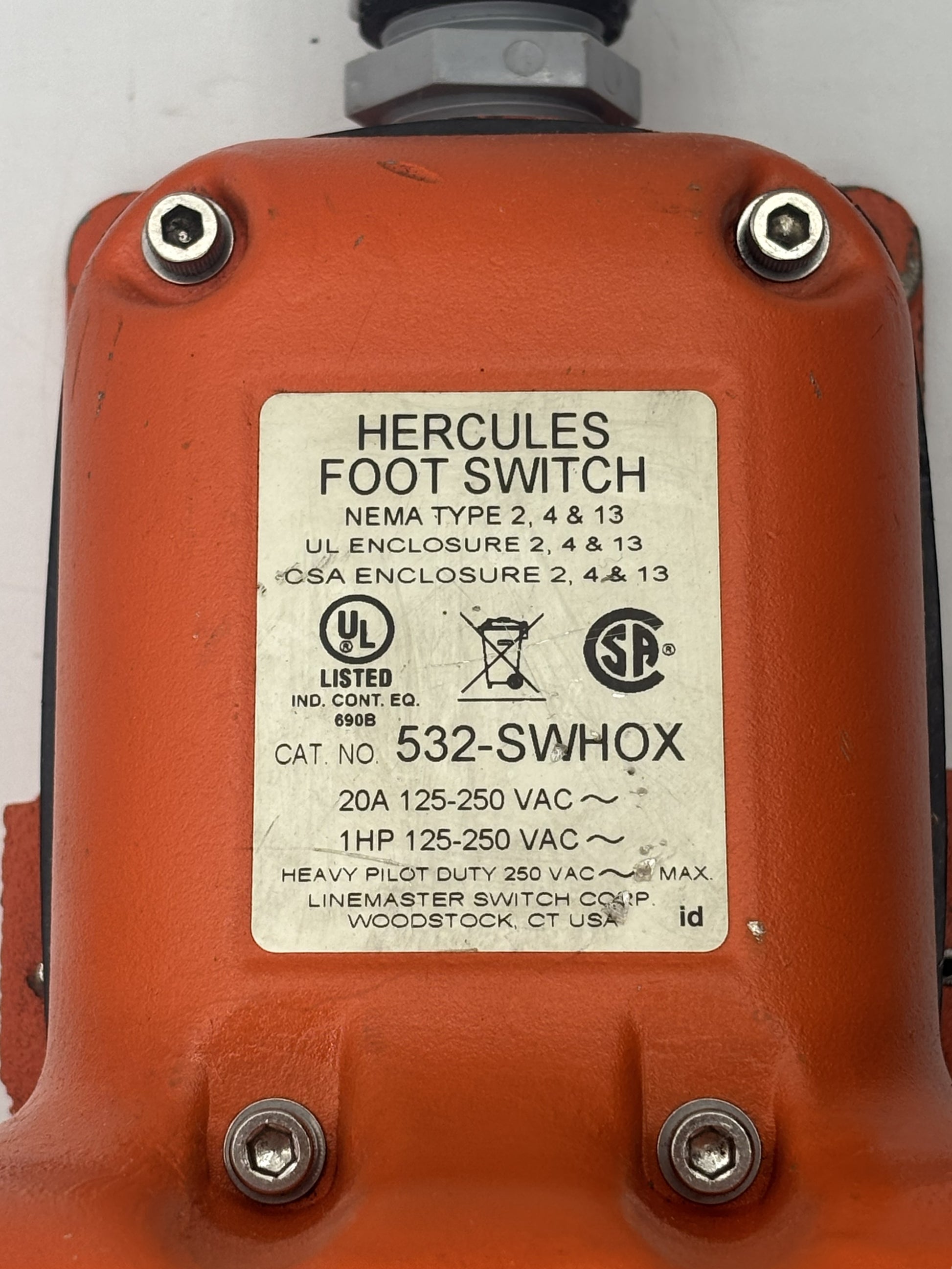

Electrical Rating: 20 A at 125–250 VAC, 1 H.P. 125–250 VAC
Housing Material: Cast iron (base and housing) with a cast aluminum OX shield

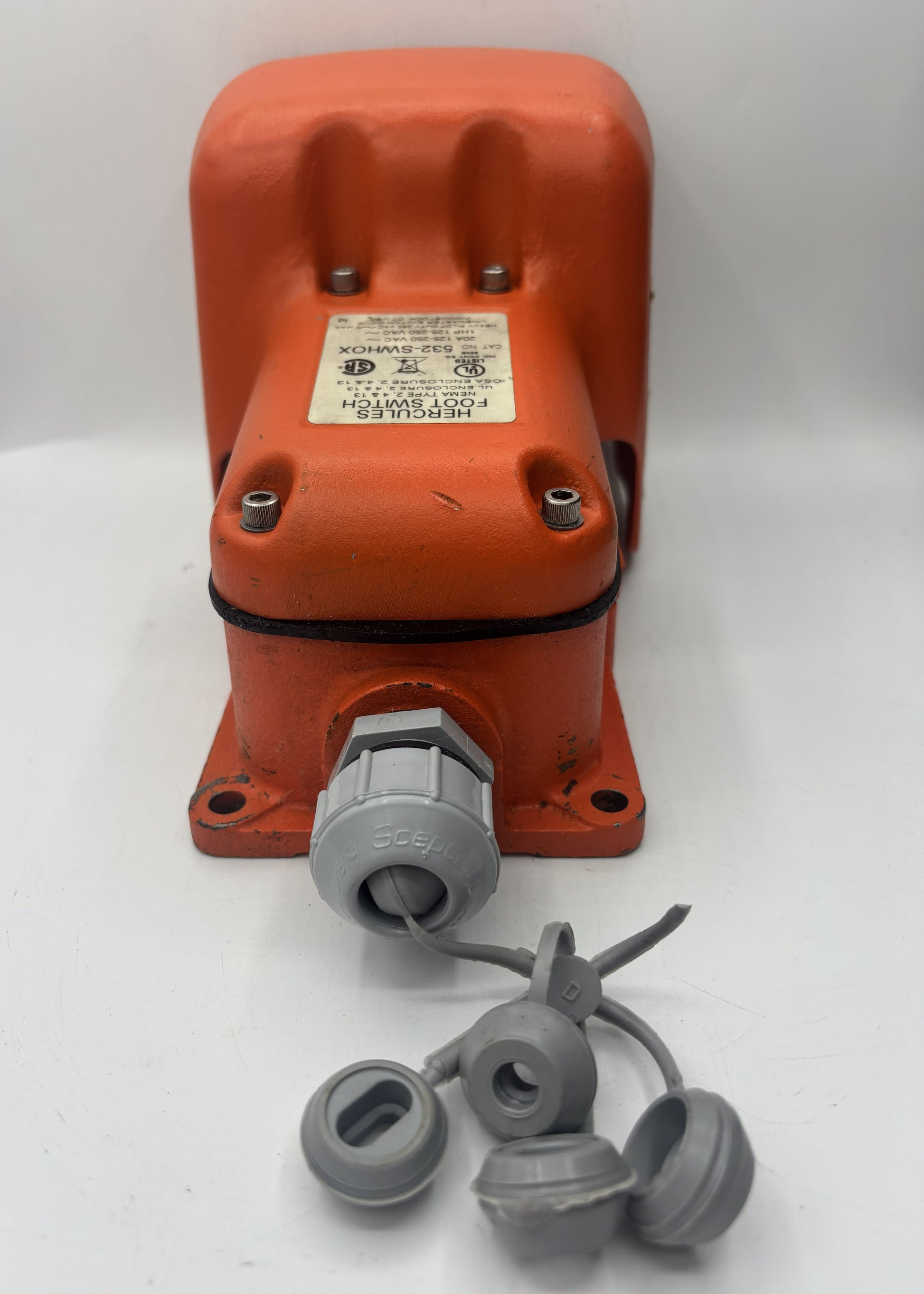

Connection Type: Screw terminal with single 3/4"-14 N.P.T. threaded conduit entry
Environmental Rating: NEMA Type 2, 4 & 13 / IP56 (Driptight, dusttight, watertight, and oiltight)
